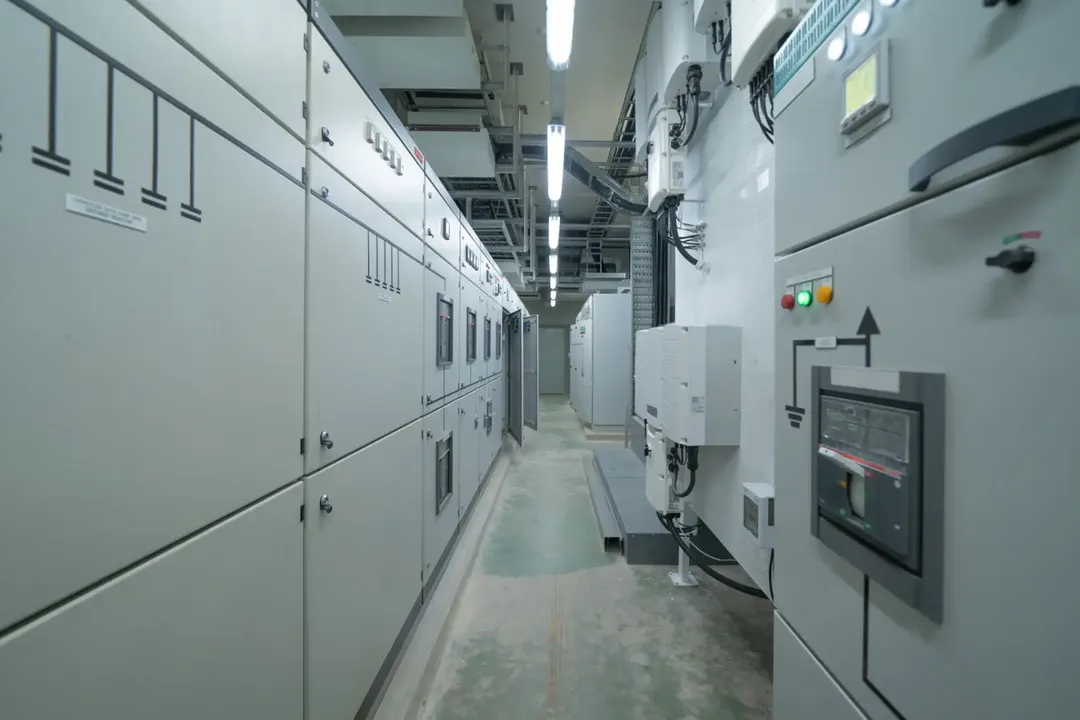

Comprehensive Guide to Substation Layout Design in Food Factories

In the intricate world of food manufacturing, the design and construction of substations play a crucial role in ensuring efficient operation and safety. Substations are pivotal in managing power distribution, and a well-engineered substation layout can significantly enhance reliability and performance in food processing plants. This article provides insights into essential design considerations and optimal layouts for various substation components, including MV switchgear, LV switchgear, and transformers, with an emphasis on safety and efficiency.

Design Considerations for Substations

The primary goal of a substation layout within a food manufacturing facility is to separate the main electrical components, ensuring reliability and safety:

• Install MV switchgear, transformers, and LV switchgear in separate rooms to reduce risks of faults or fires affecting multiple pieces of equipment.
• For dry-type transformer applications, consider a close-coupled installation with MV switchgear in the same room for space efficiency.
• Foundation design should accommodate the overall equipment weight using steel-reinforced concrete.
• Implement spill containment features for liquid-filled transformers.
• Ensure clear space around all equipment for easy maintenance and access for major equipment replacements.

Building and Safety Considerations

In compliance with local fire codes, substations in food processing plants should incorporate the following safety features:

• Forced air ventilation or cooling to maintain equipment air temperature within design limits is crucial.
• Fire alarm and detection systems, alongside fire suppression systems, should be integrated into the substation design.
• Access to substations must be limited to qualified personnel, with locked doors for enclosed rooms and fenced gates for outdoor stations.
• For enhanced personnel safety, design doors at each end of rooms or enclosed areas to prevent entrapment during emergencies.

MV Switchgear Room Layout

When designing an MV switchgear room in a food factory, consider the following:

• Front access is recommended for maintenance activities. Some layouts may also require rear access, contingent on manufacturer specifications.

LV Switchgear Room Layout

The layout for LV switchgear requires thoughtful planning to accommodate both front and rear access for maintenance:

• Depending on products and manufacturer, access needs may vary. Ensure the design allows flexibility for comprehensive maintenance activities.

Transformer Room Layout

For indoor dry-type transformers in food processing facilities, it is essential to:

• Use a metallic enclosure (cage) offering at least IP31/NEMA 1 protection to enhance safety and equipment longevity.

Conclusion

Effective substation layout design is a cornerstone of operational efficiency and safety in food factories. By adhering to best practices for electrical room separation, cooling provisions, and access controls, food manufacturing plants can ensure reliable power distribution while maintaining high safety standards. PMG Engineering excels in delivering tailored solutions that align with these principles, helping you design world-class food processing facilities.
