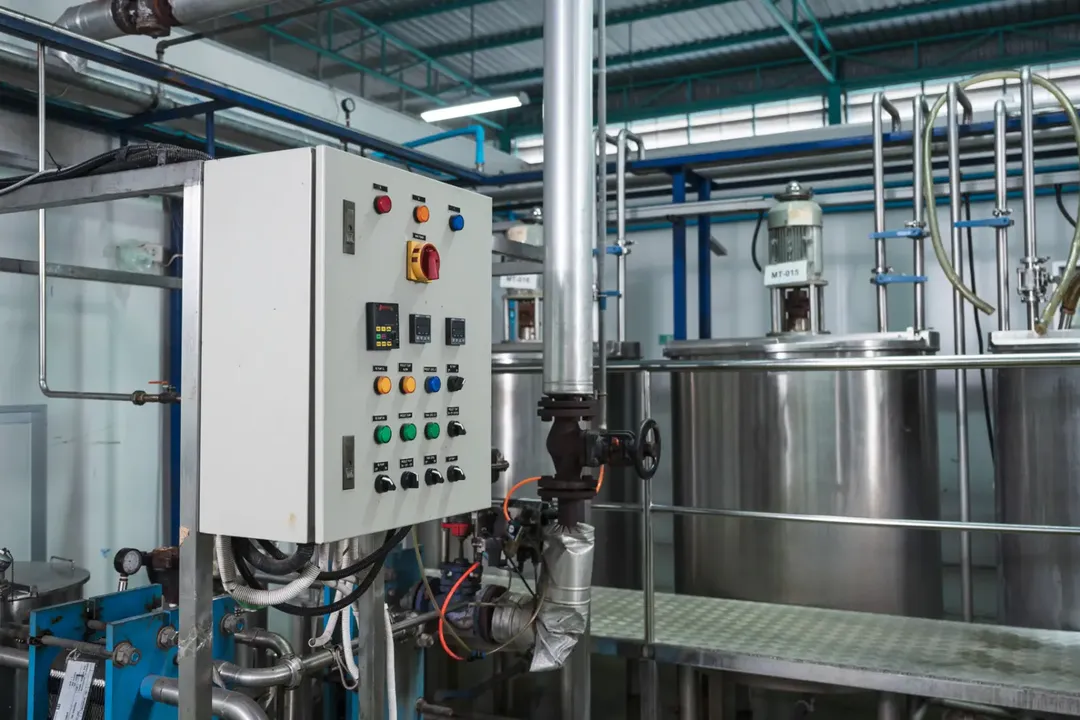

Optimizing Your Food Factory's Steam Distribution System: A Guide by PMG Engineering

In the ever-evolving landscape of the food industry, optimizing internal processes is key to maintaining competitiveness. Food engineering consultants such as PMG Engineering provide expertise in constructing and improving food factories with efficient systems. This article explores the significance of steam distribution systems in food plants, a pivotal component in the world of food processing plant design and operation.

What is Steam Distribution?

Steam distribution is the essential link between the central steam generator—whether it's a boiler house or a co-generation plant—and the end-user. Understanding the process of steam generation is crucial for food manufacturing consultants aiming to enhance operational efficiency.

The Process of Steam Generation

• Upon heating, water reaches a saturation temperature, dependent on cylinder pressure.
• Post-boiling, steam is produced at a constant temperature until all water converts into wet steam.
• Once entirely evaporated, it becomes dry saturated steam.
• Further heating raises the temperature, creating superheated steam, behaving similar to a perfect gas.

Understanding the Condensate Recovery Unit

A critical step in any efficient steam system is condensate recovery. This process recycles the discharged condensate, preserving both water and sensible heat. By doing so, food manufacturing engineers can significantly cut down on costs related to energy, chemical treatments, and make-up water.

Essential Equipment for Steam Distribution

Setting up a successful steam distribution system involves strategic use of specific equipment:

• Control Valve: Regulates fluid flow by adjusting the flow passage size based on a controller's signal.
• Pressure Reducing Station (PRS): Converts high-pressure steam into low-pressure steam through a combination of different equipment.
• Pressure Gauge: Measures pressure within the steam line.
• Temperature Gauge: Records the temperature along the steam line.
• Flow Meter: Indicates flow within the steam line.
• Air Vent: Eliminates unwanted air from the system.

Inside the Pressure Reducing Station (PRS)

The PRS plays a vital role in steam management by reducing high-pressure steam to the required lower pressure. Components include:

• Moisture Separator: Removes essential from gases and steam.
• Pressure Gauge: Measures steam intensity.
• Inlet & Outlet Stop Valves: Used for isolation.
• Strainer: Separates solid particles.
• Safety Valve: Maintains maximum set pressure.
• Pressure Reducing Valve: Lowers the steam pressure.
• Drain Assembly: Ensures proper drainage and isolation.

Why Partner with Food Industry Consultants?

Collaborating with food industry consultants like PMG Engineering ensures a tailored approach to factory design and process optimization. Their knowledge of food processing plant construction, coupled with their consulting services, makes them invaluable partners in driving factory-wide improvements.

Conclusion

Streamlining steam distribution is a vital component in food and beverage engineering. Integrating modern technologies with traditional methods can lead to significant energy efficiency and cost savings. By leveraging the expertise of food processing consultants, your factory can optimize this crucial system for sustainable success.
