Introduction to Ultrasound in Food Processing
Most people associate ultrasound with bats and dolphins for navigation, but this technology has evolved significantly, finding applications in food processing. Initially linked to the biomedical field, ultrasound is now transforming the food industry by enhancing efficiency, ensuring food safety, and producing high-quality products. Its nonthermal processing benefits include increased throughput, reduced cost, improved product quality, process simplification, and lower energy consumption.
Applications of Ultrasound Technology in Food Processing
High-power ultrasound is widely used in various food processing operations, including:
- Crystallization
- Freezing & Thawing
- Bleaching & Degassing
- Extraction & Drying
- Filtration & Emulsification
- Sterilization & Microbial Inactivation
- Cutting & Textural Modification
This technology has applications in multiple food segments, including dairy technology, cereal processing, honey processing, protein structuring, enzyme activity control, and water treatment.
What is Ultrasound?
Ultrasound consists of mechanical sound waves with frequencies above human hearing capacity (>20 kHz). When these waves travel through a material, they create compressions and decompressions, producing high-energy interactions that can modify food structures. These waves are longitudinal, meaning they can travel through solids, liquids, and gases. Their effects include:
- Cutting & Melting (solids)
- Cavitation & Emulsification (liquids)
- High-intensity acoustic fields (gases)
Types of Ultrasound Used in Food Processing
Ultrasound in the food industry falls into two main categories based on frequency and energy levels:
1. Non-Destructive Ultrasound
- High-frequency (1 MHz – 10 MHz), low-energy waves
- Used for quality monitoring during food processing and storage
- Evaluates composition, texture, and physiochemical properties of meat, poultry, fish, dairy, fruits, and cereals
- Applications include fresh produce quality control, cheese processing, bread & cereal analysis, and oil purity testing
2. Processing Ultrasound
- Low-frequency (20 kHz – 1 MHz), high-energy waves
- Used to modify food structures via cavitation
- Applications include emulsification, defoaming, microbial inactivation, freezing, and drying
Ultrasound Generator System
A food industry ultrasound generator system comprises three main components:
1. Power Generator
- Converts electricity into energy for the system
2. Transducer
- Converts electrical energy into mechanical vibrations
- Common types: Piezoelectric & Magneto-strictive transducers
3. Emitter
- Radiates & amplifies ultrasonic waves
- Shapes include horns, sonotrodes, knives, and nozzles
Types of Ultrasound Processing Technologies
1. Ultra-sonication
- Uses high-energy ultrasound at low temperatures
- Ideal for heat-sensitive food products
2. Mano-sonication
- Combines ultrasound and pressure
- More effective than ultrasound alone for enzyme inactivation
3. Thermo-sonication
- Combination of ultrasound and heat
- Enhances microbial inactivation in liquid food preservation
4. Manothermo-sonication
- Combines heat, pressure, and ultrasound
- Efficient at inactivating heat-resistant microorganisms
Key Equipment Using Ultrasound Technology
- Ultrasonic Cheese Cutting Machines
- Ultrasonic Sandwich Cutting Machines
- Ultrasonic Sealing Machines for Blister Packs & Pouches

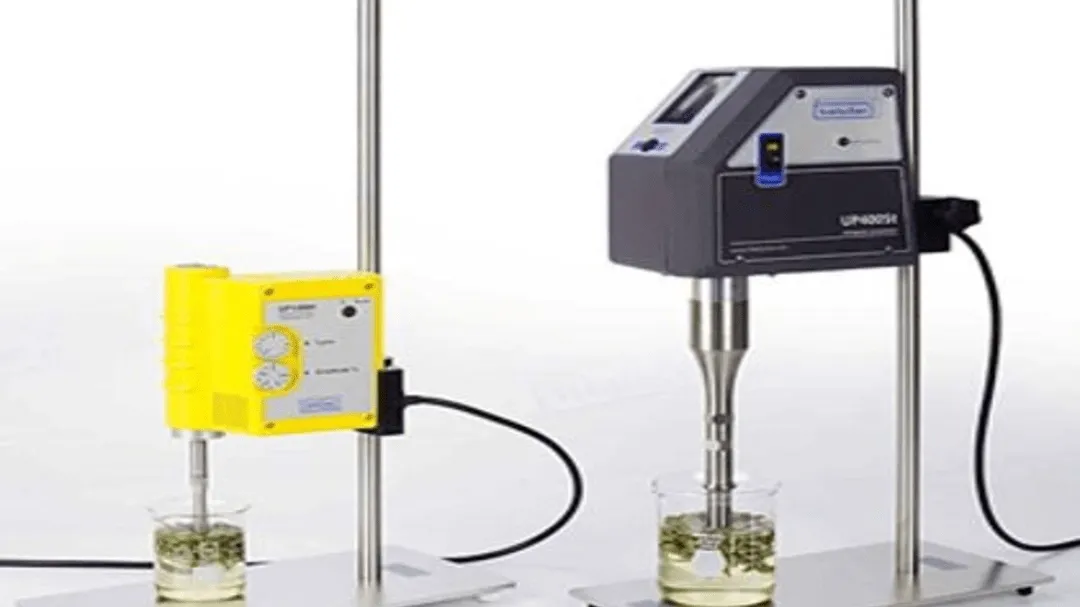

- Ultrasonic Homogenizers
- Ultrasonic Wad Sealing Machines
Conclusion: Future Outlook for Ultrasound in the Food Industry
Ultrasound offers major advantages for food business consultancy and food manufacturing consulting, including:
- Enhanced mass transfer
- Improved food preservation and safety
- Better texture control
- Lower operational costs
As demand for clean-label, efficient, and high-quality food rises, food industry consultants will play a key role in guiding manufacturers toward ultrasound integration for sustainable growth.
