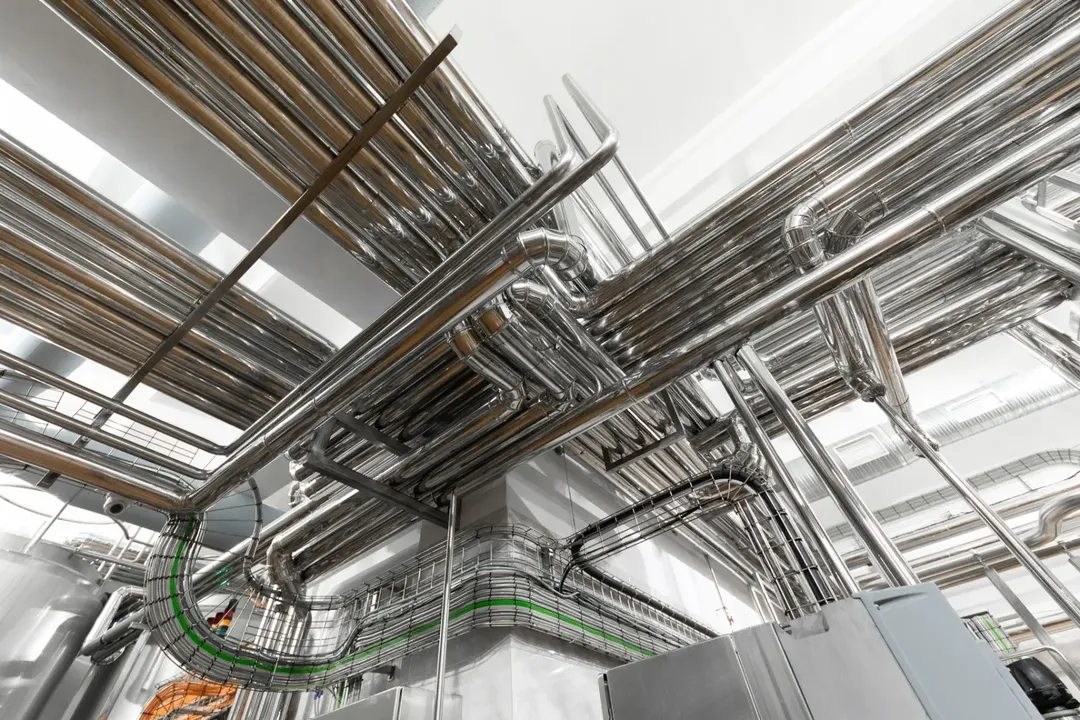

Introduction
Cable management is a critical component in the design and construction of food processing plants. It ensures the smooth operation of electrical systems and minimizes interference, thereby enhancing performance. As a leading food industry consultant, PMG Engineering understands the intricate needs of food factories and offers tailored solutions for cable management. This article delves into the various aspects of cable management, including material choices, installation applications, and best practices.
Cable Tray Material & Finishing
Cable trays play a pivotal role in supporting all types of wiring, from high voltage power lines and power distribution cables to sensitive control, telecommunication, and optical cables. The materials used for cable trays are chosen based on environmental factors, as well as corrosion and electrical considerations. Common materials include:
- Aluminum: Lightweight and corrosion-resistant.
- Steel: Provides strength and durability.
- Stainless Steel: Offers superior corrosion resistance.
Cable trays may also be treated with various finishes, such as pre-galvanized and hot-dip galvanized coatings, to enhance their durability.
Tray Installation Applications
Proper installation of cable trays is crucial for ensuring the integrity and functionality of electrical systems. Here are some key guidelines:
- Maintain a minimum of 300mm of clear space in vertically stacked trays.
- Ensure electrical continuity by bonding trays at each joint with a bonding plate.
- Install a sufficiently sized bare copper grounding conductor in each tray, bonded to each segment and the building’s structural steel.
- Dedicate trays for MV and LV cables, with metal barriers separating LV power cables from control cables to prevent interference.
What Not to Do
Effective cable management systems prevent mixing electrical cables with pneumatic tubing and ensure proper grouping of single-core conductors by circuit. Adherence to these practices prevents overloading and maintains safety and performance standards.
Management Types
Several cable management systems are available, each designed for specific requirements:
- J Hook: Ideal for high-performance cable, used sparingly over short runs.
- Cable Ladder: Made of galvanized steel or PVC, secures cables with pressure on the rungs.
- Snake Tray: Flexible and easy to install, similar to a cable basket.
- Perforated Tray: Offers easy access to cables and supports weight along the whole run.
- Conduit: Provides EMI protection, suitable for neat and aesthetic installations.
- Raceway Systems: Accommodate minimum bending radius and support system expansion.
Good Installation Method
Proper installation methods ensure efficient cable management. The use of overlapping lids, deep conduits, and adequate support systems enhances the operational capacity of cable installations. It is essential to support the transmission capabilities and avoid part of the issues that impede future performance.
Conclusion
Cable management is a foundational element in food plant engineering. By understanding material options, installation best practices, and management types, food factories can ensure optimal operational efficiency. PMG Engineering, with its expertise in food processing plant design, supports your project from conception through execution, ensuring you achieve world-class standards.
About PMG Engineering
PMG Engineering provides comprehensive food business consultancy and design services, covering everything from engineering design and procurement to project management and factory assessments. Our intricate understanding of food and beverage engineering positions us as a trusted partner in building cutting-edge food factories.
